Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton
(I) Product Overview
this product supports GSM850/900/1800/1900 network and GPRS, and can seamlessly switch between different networks. Remote monitoring, video recording and taking photos! Small size; Strong signal; Loud voice; Accurate positioning; Clear picture; Stable performance; Long standby; Universal worldwide. These functions are his biggest advantages.
(Ii) technical parameters
model | X009 | |
the size of | long 55mm wide 45mm high 14mm | |
camera | sensor Type | CMOS |
pixel | 2 million | |
the expansion card | micro SD CARD | |
battery | polymer (450mah) | |
software version | X009DZ-FLASH128 +32-LBS-01020120825 | |
programme | MTK | |
standby time | use when 3-5 days | |
the standby 12-15 days | ||
the functional operations
boot
press and hold the switch/Machine key for 3-5 seconds. If the indicator light flashes continuously, it will turn on. After the indicator light is off, you can dial
shutdown
press and hold the switch/Machine key for 3-5 seconds, the indicator light is always on, and the light will be turned off later
take a Picture
edit The text message "000" to send to this product, a Photo will be automatically taken and the TF card will be added to The reply prompt: the Photo has been saved in The memory card, the picture has been stored
take a picture or transmitted from globalized games
edit the text message "111" and send it to this product. (this function must meet the requirements: ① TF card should be inserted into the machine ② GPRS function should be enabled for the mobile phone card in the machine)
video
edit the text message "222" and send it to this product (sending "444" when recording will end and save it to TF card) reply prompt: Start recording video and Start recording
recording
edit the text message "333" and send it to this product (sending "444" when recording will end and save it to TF card) reply prompt: Start recording sound and Start recording
formatting the memory card
edit the text message "999" and send it to this product to format the memory card.
Voice callback
(1) SMS Callback
edit text message "777" to send to this product. When the sound around the product exceeds 60 decibels, there will be text message "Warning :anyone entered! Security reminder: someone broke in without permission to reply to the user
(2) call back
edit the text message "888" to send to this product. When the sound around the product exceeds 60 decibels, it will directly call back to the user.
Manually adjust the sensitivity:
the authorized person edits the text message "777#8#" (SMS Callback) or "888#8#" (call callback) to the product. The machine will enable the voice control function and set the sensitivity of sound detection with a number after 777 or 888. If the setting is successful, an SMS reply will be prompted. The last number can be 8 to 255.
Note: By default, the last SMS command automatically cancels the previous SMS command. The end of all the above functions is to edit the SMS message "444" to this product.
SOS: Edit the SMS "SOS + distress number" to send to this product. For example, if you send a text message to the product, the machine will set 13512345678 as the sos number, and you can set up to 5 SOS numbers. Press and hold the SOS button for 3-5 seconds in case of emergency, the set sos number will be automatically dialed. (Delete SOS number command: "QCSOS")

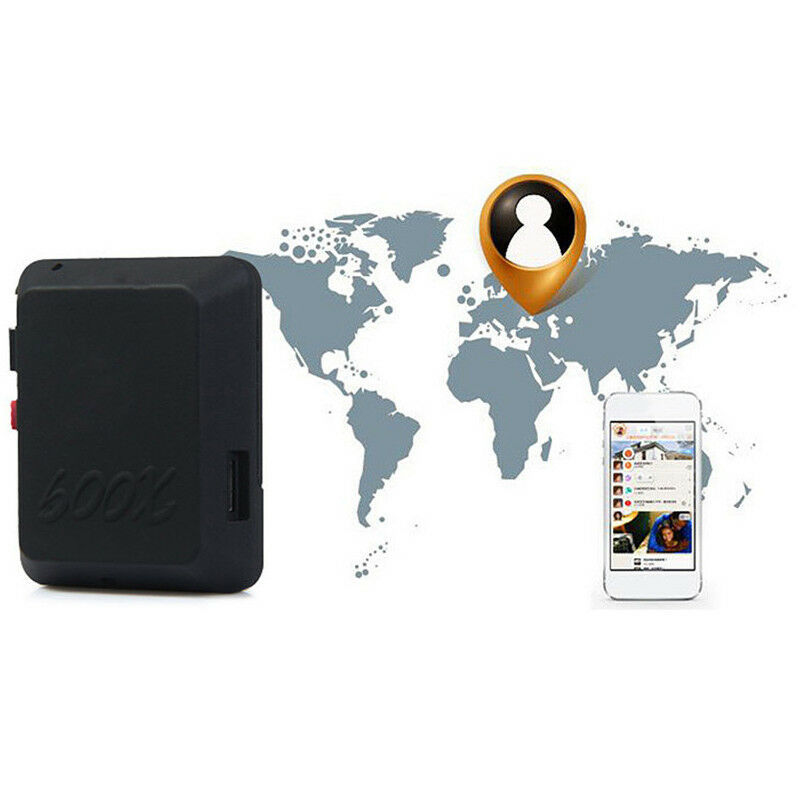

positioning
(1) positioning of Chinese information: When you edit the letter "DW" to the machine, you will reply a message containing text/website within about one minute. Both mobile phones and computers can log on to the link to view the detailed location.
(2) positioning of English information: When you edit the letter "DWEN" to the machine, you will reply a message containing English/website within about one minute. Both mobile phones and computers can log on to the link to view the detailed location.
(3) continuous data upload: the user edits the letter "LXDWX" to the machine.(X indicates the time interval of positioning. Therefore, LXDW 5 indicates that data is uploaded every 5 minutes. You can log on to the platform to query the trajectory. Positioning interval 1 ≤ X ≤ 60) disable continuous data Upload command: "GBDW"
tip:
most foreign countries can directly send "DWEN" for positioning. A few countries need to set APNs before Positioning. The format is edit text message "APN,APN name, user name, the password#" is sent to this product (the mobile phone card of which operator is inserted in the device corresponds to the ARN of which operator is set). For example, Egypt click Vodafone; Users edit the text message "APN, lightning, internet,internet#" and send it to this product. After receiving the SMS reply "Set OK", send "DWEN" or "LXDWX" to query the corresponding information.
(4) platform query: if the user edits the letter "PT" and sends it to the machine, a text message containing the machine's own IMEI number and password will be returned, users can log on to the http://www.dx009.net platform with IMEI number and password to query background information (supports multiple map queries, and can query machine location, historical trajectory, electronic fence, Operation statistics, and password modification.)
power Query
edit the text message "666" to send to this product. (close command: "123")
Description:
GPRS GSM SIM Card HiddenCamera Recorder DV Ear Bug Monitor X009 Tracker SOS
The product supports GSM850/900/1800/1900 network and GPRS, and can switch
Seamlessly between different networks. Mini; signal strength; loud; precise
Positioning; clear picture; stable; long time standby; globle. All these
Features:
GSM Work frequency(850MHz, 900MHz, 1800MHz, 1900MHz)
We don't include the simcard, buyer need buy a GSM simcard in their local service store if they don't have exist one!
Real-time monitoring/separate recording/MMS monitoring surveillance device
Compact design, stable performance, beautiful and practical
Feature automatic answer function
An indispensable utility products for family, education, healthy living
Easy operation, simple to use
Support TF card up to 8GB(Not included)
Specifications:
Color: Black
Video format: AVI

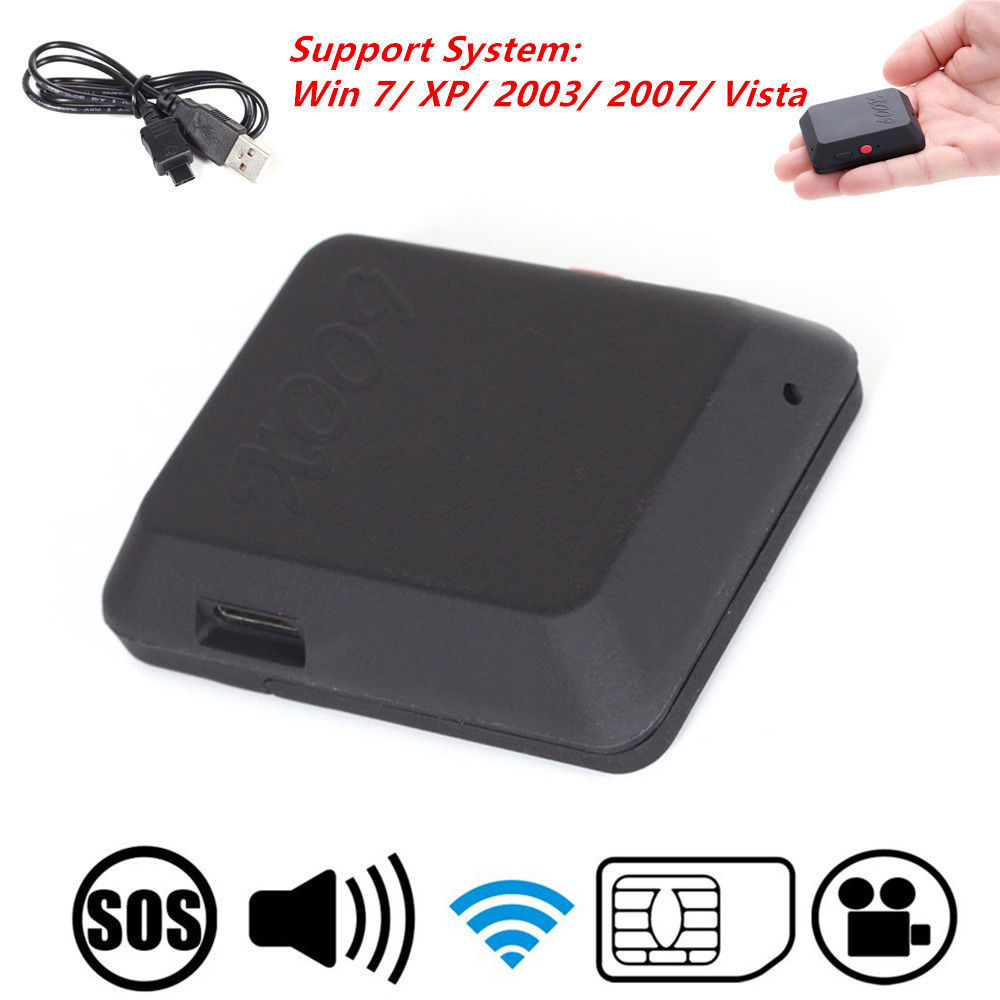

Support system: Win 7/ XP/ 2003/ 2007/ Vista

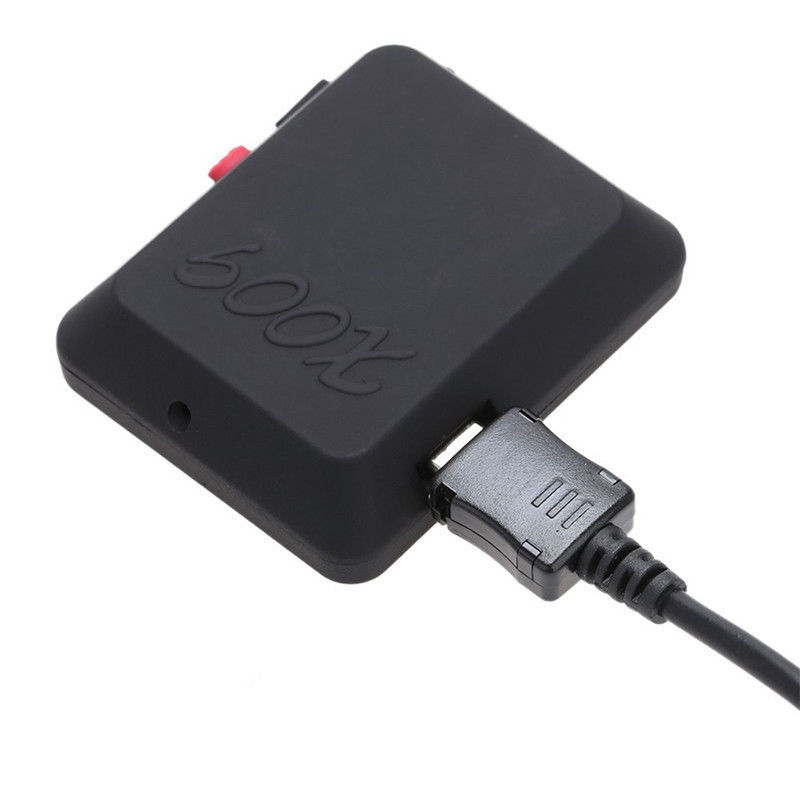

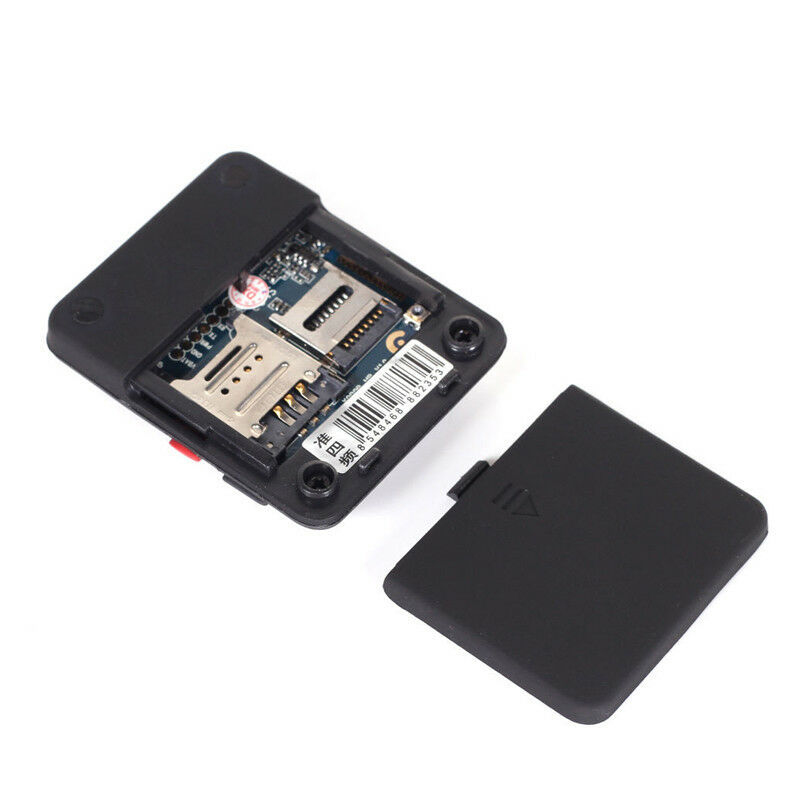

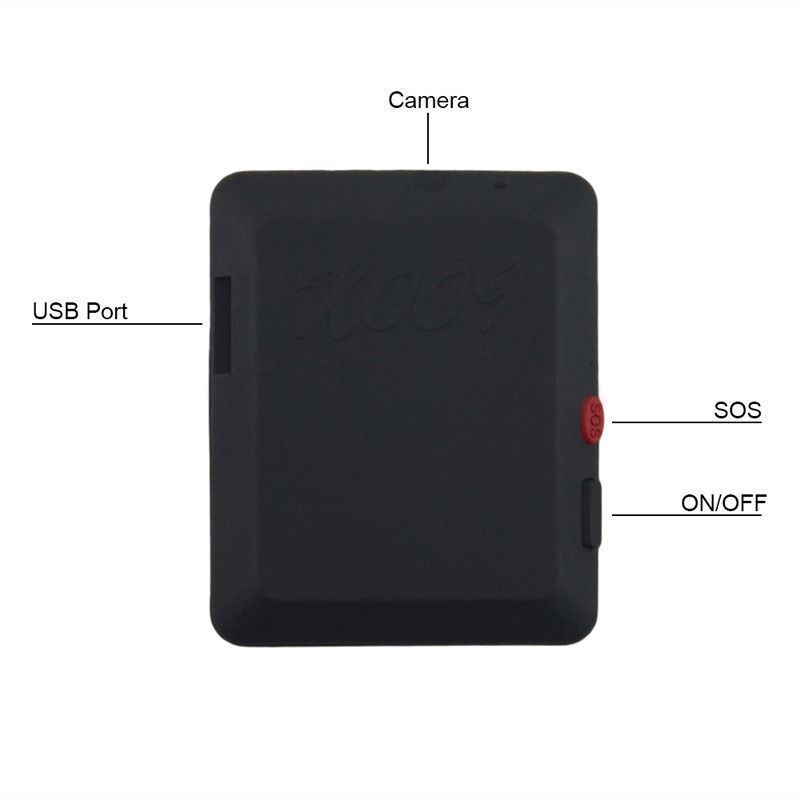

Ports: Micro USB Interface, TF card slot, SIM card slot
Audio/Video: Built-in microphone
Sensor type of Camera: CMOS
Camera Pixel: 0.3 million
Support TF card, up to 8GB
Power supply: DC 5V
Battery capacity: 450mAh
Note:
This device onLY support GSM simard,don't support 3G/4G/CDMA network!
We shipped without Retail packing, let us protect the environment together

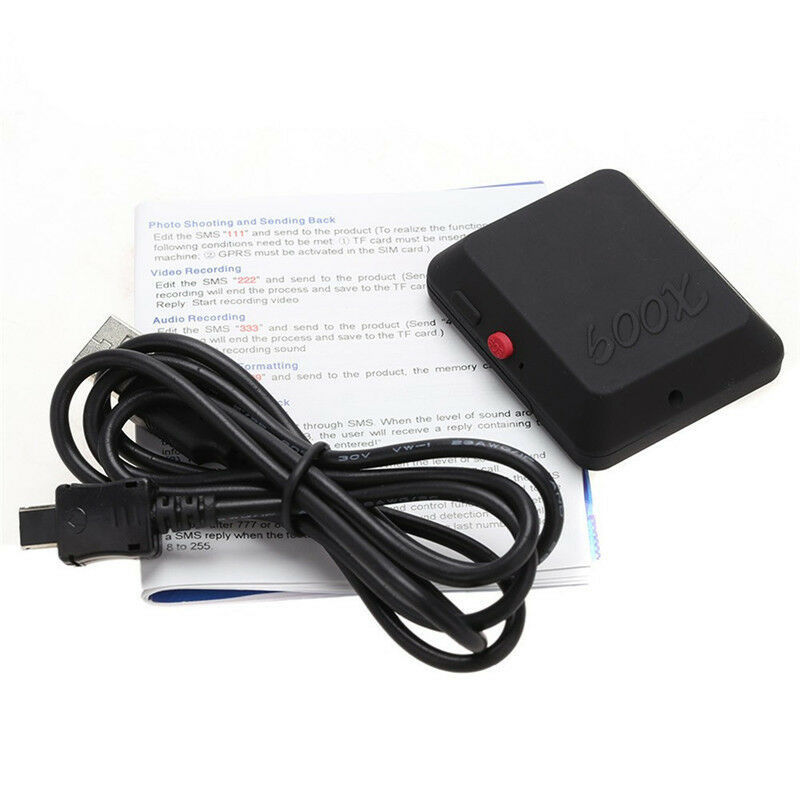

Package contents:
1 x GSM X009
1 x User manual
1 x USB cable
