Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton
Product description:

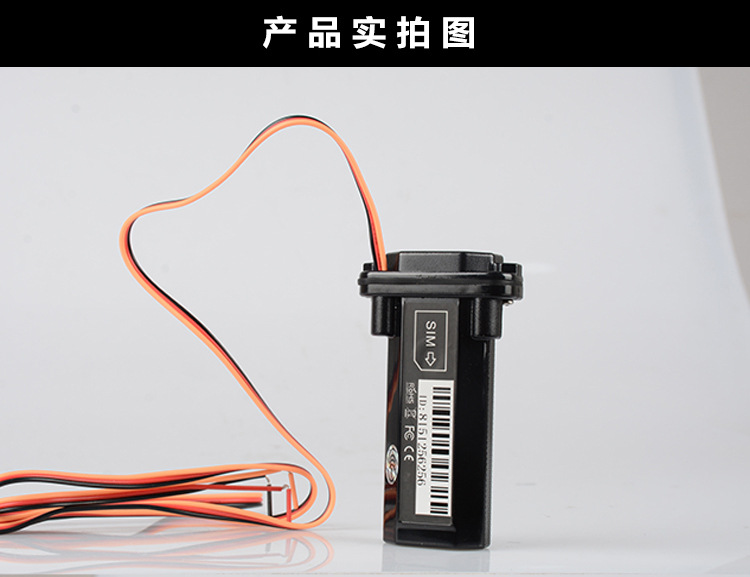

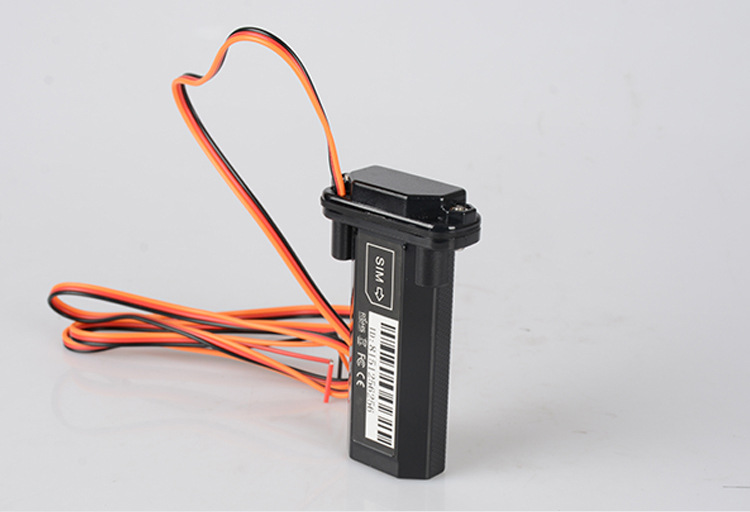

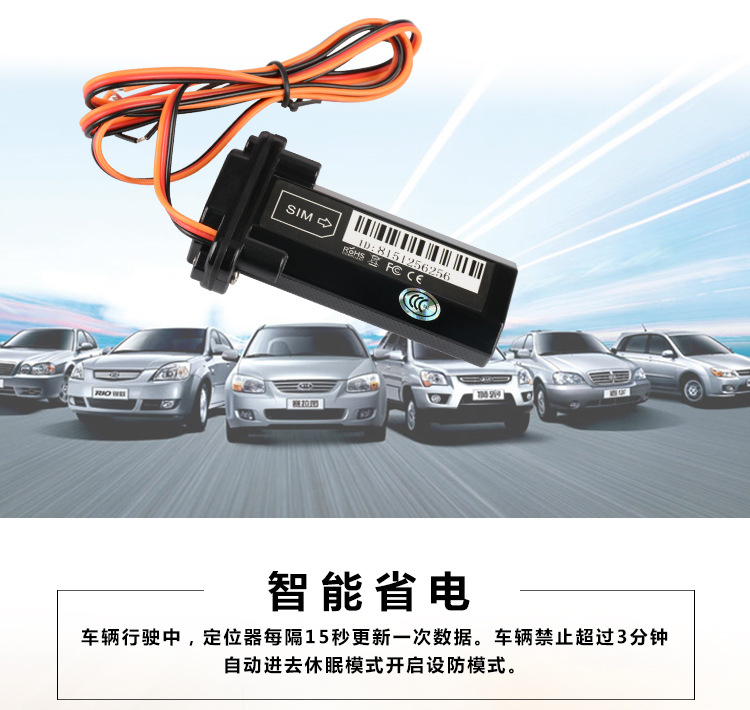

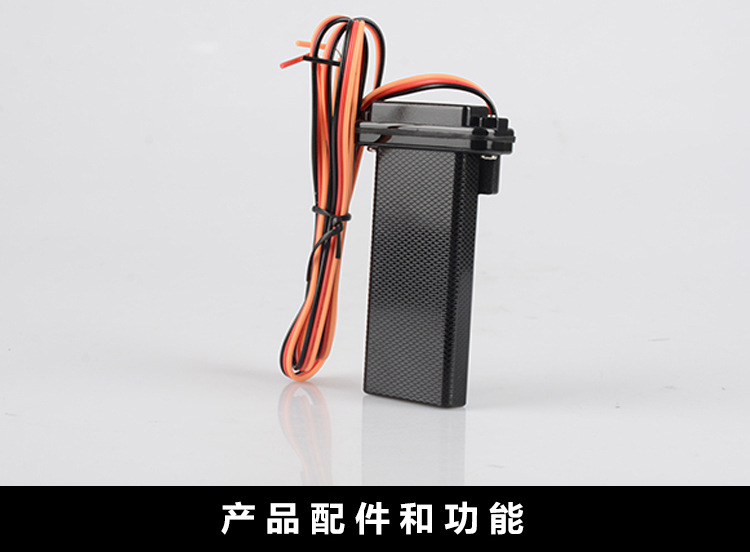

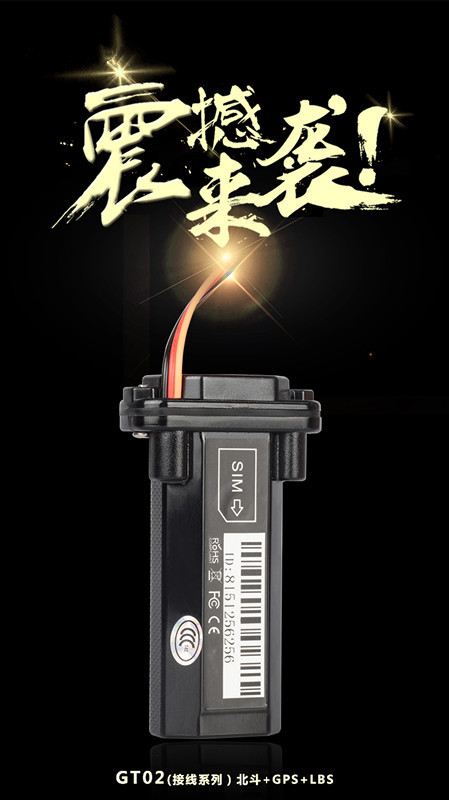

GT02 is a multi-functional GPS vehicle data terminal. It combines GSM wireless communication technology and GPS system positioning technology. The terminal adopts industrial-grade high-integration full-built antenna design and has ACC detection and vibration anti-theft alarm functions. The terminal can be connected to the SOS emergency call button and MIC. In the emergency, the terminal can call the preset SOS number and send a location message for help. The user can send instructions to implement remote power cut-off, wide voltage input range makes the terminal widely applicable to logistics trucks, rental cars, taxis, special vehicles, etc. to provide all-weather real-time positioning functions for vehicles. With global positioning service platform, remote vehicle management can be realized.
Product features:
● Vehicle ACC detection;
● fully built-in dual antenna, high integration design;
● real-time positioning and Tracking, Intelligent vibration and anti-theft;
● built-in GSM and GPS antenna design;
● AGPS + GPS + GSM/GPRS communication module;

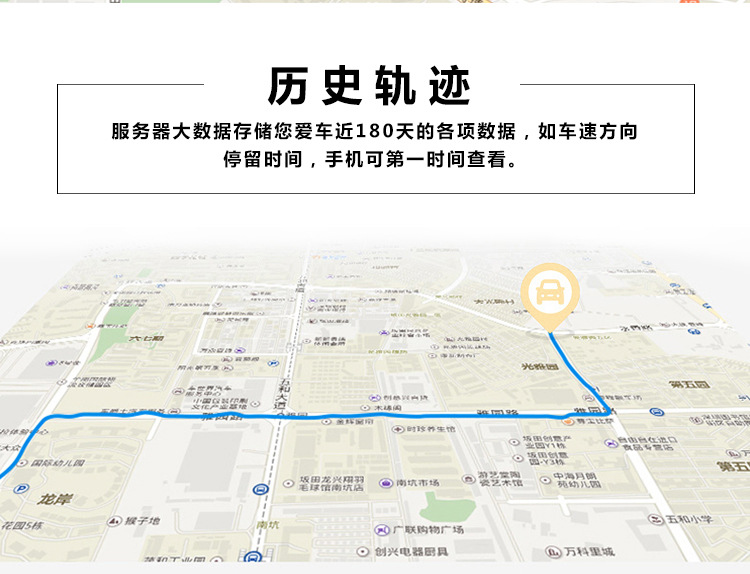

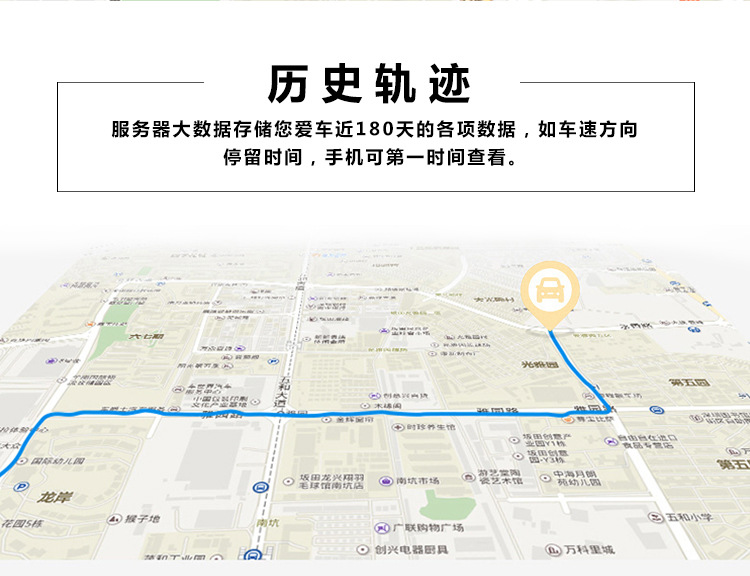

● real-time location tracking and intelligent uploading of location information;
● Install Car relay to remotely control vehicle oil and electricity;

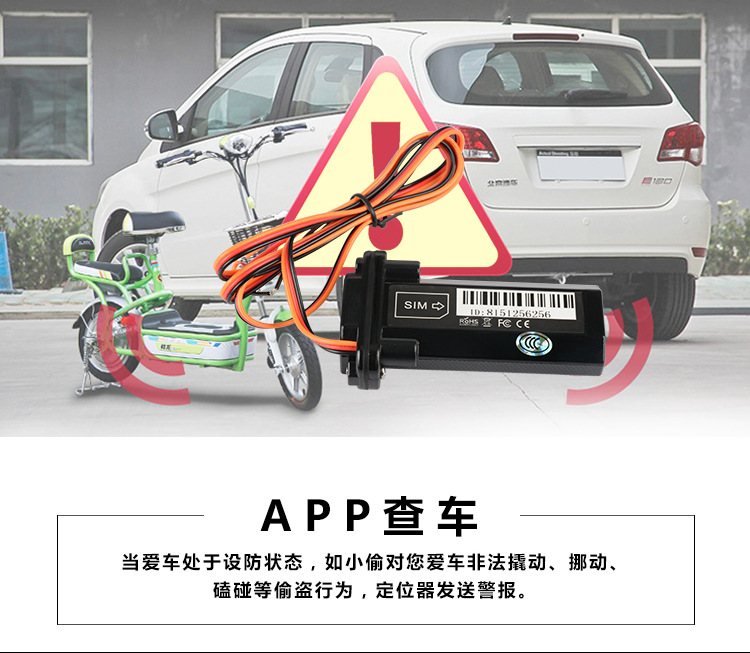

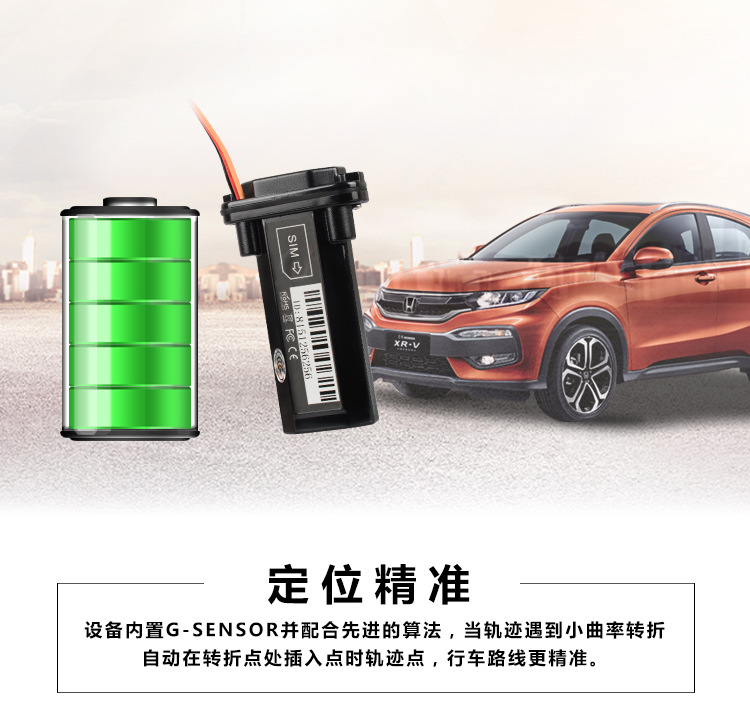

● Built-in acceleration sensor to realize vibration alarm function;
● supports ACC detection and real-time reporting of vehicle status;
● Built-in switching power supply, wide voltage input range (9~75V);

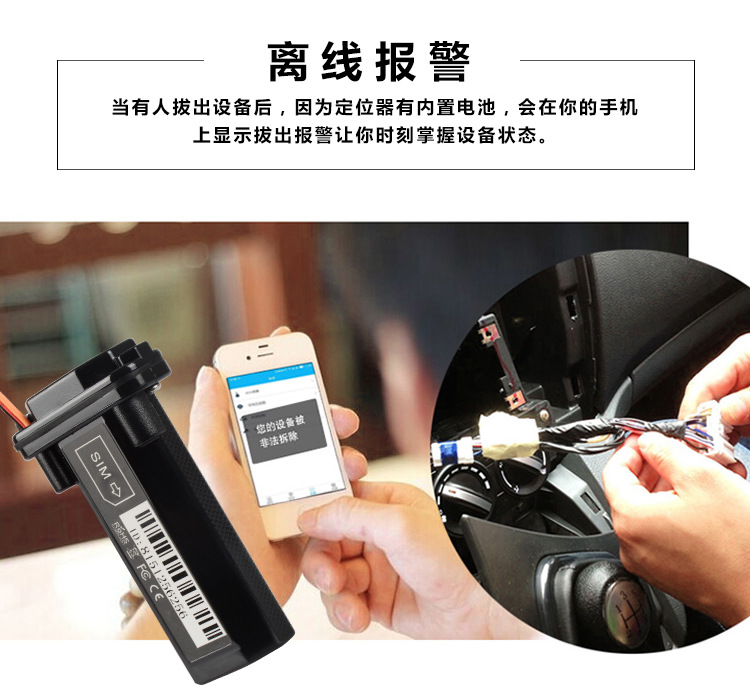

● Built-in polymer battery, illegal cutting line alarm of terminal main electricity;

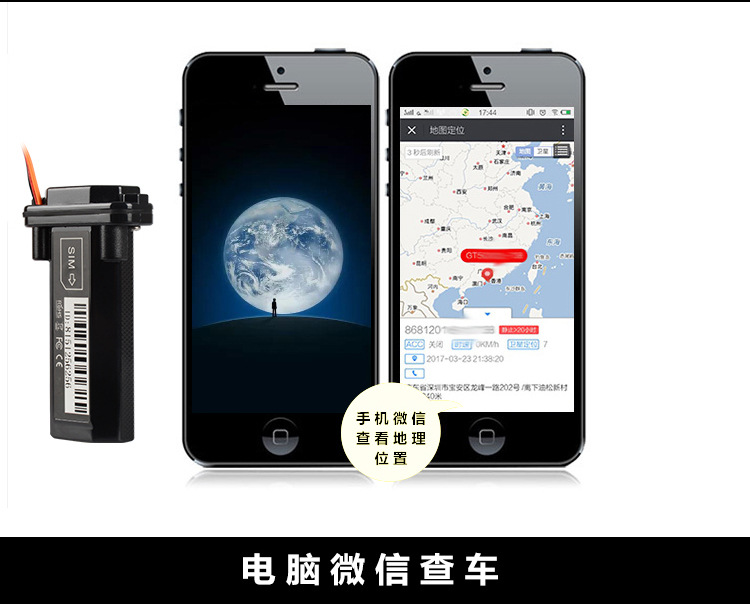

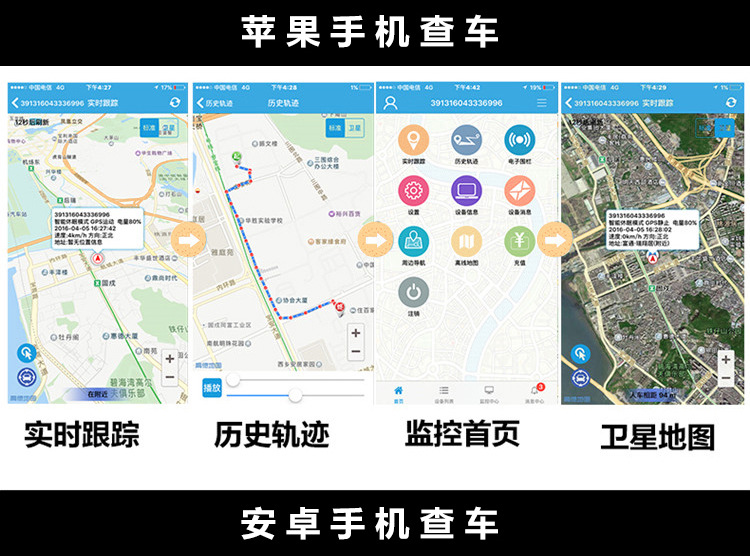

● location information can be obtained through SMS or GPRS(TCP);
● Built-in monitoring CPU and automatic fault recovery function;
● Three-color LED status display to know the working status of the terminal at any time;

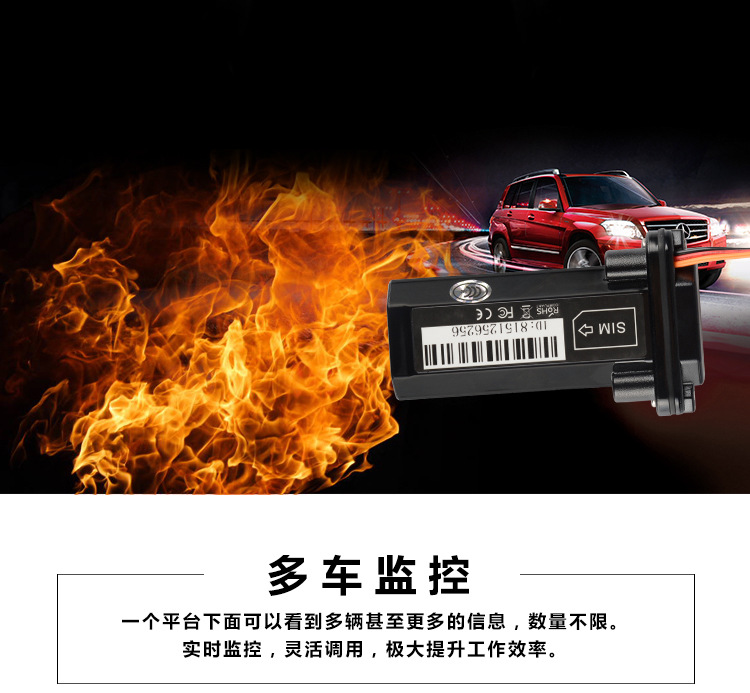

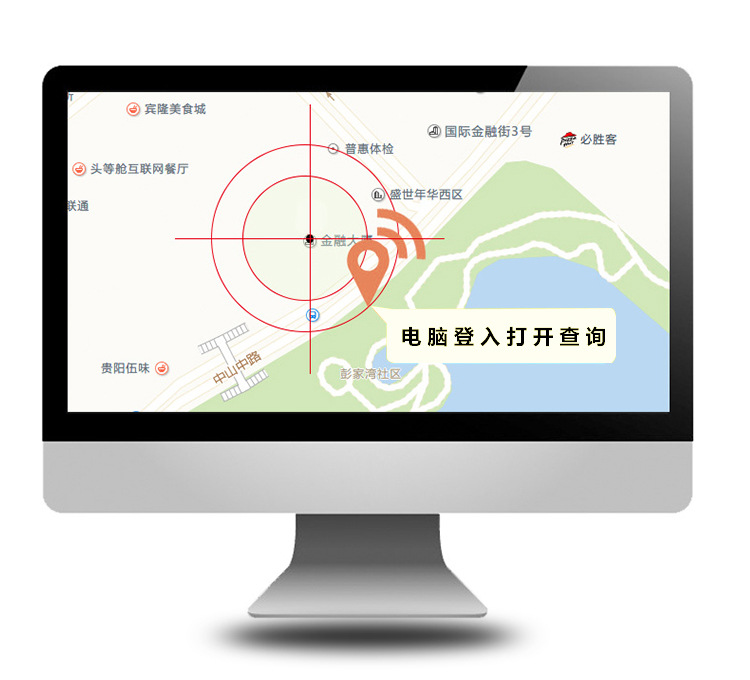

● supports access to the location service platform, making it easier to query the location.
● Use Swiss UBLOX 7th generation 4 system navigation core UBX-G7020 20MA ultra-low working current.
● true A- GPS function, unparalleled positioning performance, fast and accurate positioning in extremely poor use environment.
● GSM/GPRS use Taiwan MTK high integration GSM/GPRS four-frequency chip MT6260
● perfect anti-card, anti-disconnection, anti-crash software design, making the product stable and worry-free.
● Luxury Taiwan imported military half-hole multi-layer PCB
features:
● Communication System: GSM
● GSM frequency: Quad-frequency 850/900/1800/1900 MHz
● GSM antenna: Built-in four-frequency bracket antenna
● GPRS:Class 12
● GPS:UBLOX7
● number of channels: 56 channels
● Tracking sensitivity:-159dBm
● capture sensitivity:-144dBm
● positioning Time: hot start <1 sec(open sky)
cold start <29 sec(open sky)
● GPS antenna: Built-in high-gain ceramic Patch antenna
● Built-in battery: 3.7vDC
● Working voltage/current: 12-100 vDC/10-30mA
● LED indicator: 3 LED status indication: GPS-blue GSM-yellow Power-Red
● application environment: Operating Temperature:-25°C to +60°C
working humidity: 5% to 95% non-freezing
product Features | ||||

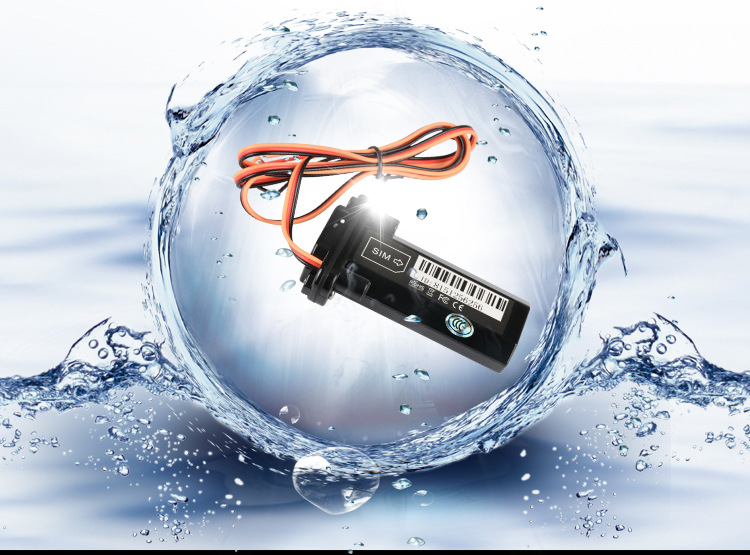

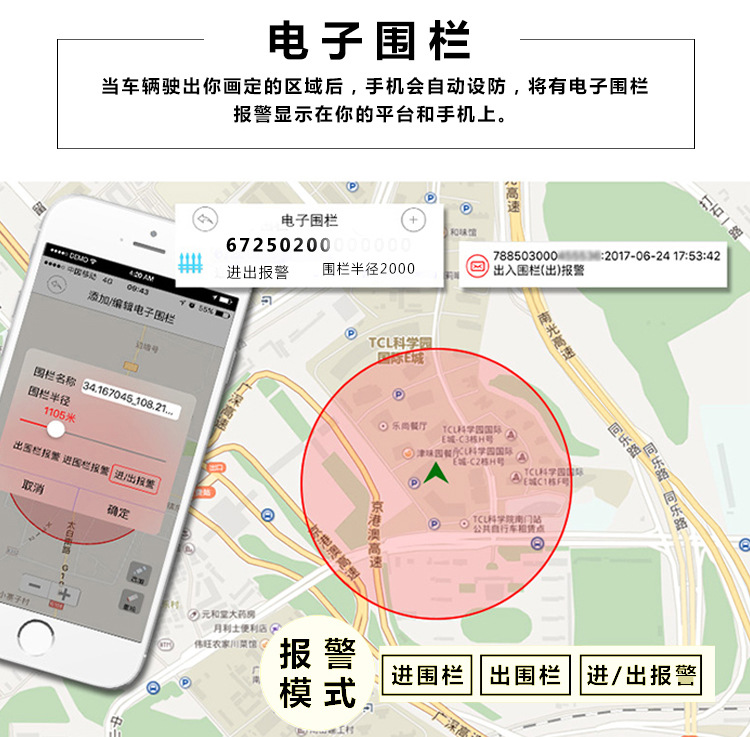

1. Precise positioning with an accuracy of 5 meters 2.gps + Beidou + LBS three-model positioning 3. Three-proof design: waterproof, dustproof and drop-proof. 4. Full functions include ACC detection, remote oil and electricity cut-off (optional), power failure alarm, overspeed alarm, vibration alarm, displacement alarm, ACC illegal start alarm, etc. 5. Wide voltage design support 9v-75v | ||||
application areas | ||||
rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles, etc. | ||||

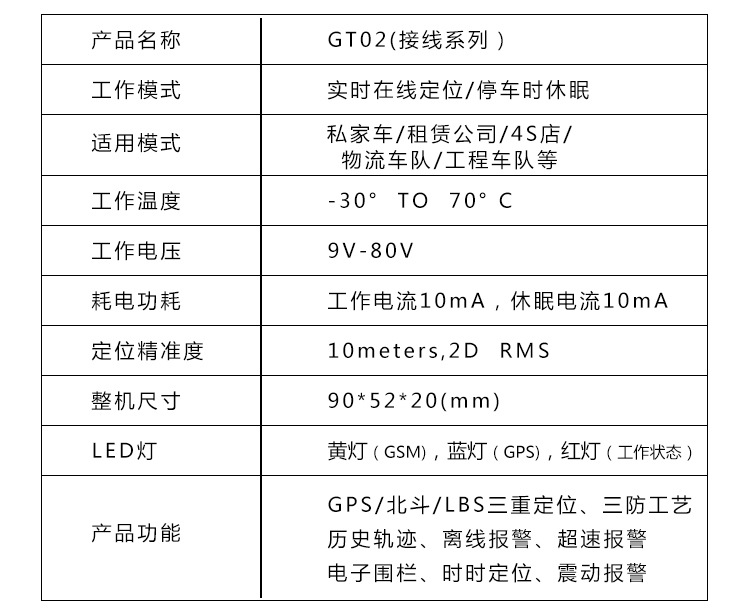

Device parameters | ||||
project | the feature name | there are | no | functional description |
electrical characteristics | power supply | ● |
| battery power supply |
operating voltage range | ● |
| DC 9V - 75V | |
working current | ● |
| 12V/30MA - 60MA | |
sleep current | ● |
| 12V/5MA - 15MA | |
built-in battery capacity | ● |
| 140mAh (3.7V Polymer battery) | |
environmental Performance | operating temperature range | ● |
| -20 ℃ - 70 ℃ |
storage Temperature range | ● |
| -30 ℃ - 80 ℃ | |
work humidity range | ● |
| 5% - 95% | |
the communication characteristics | communication Module brand/chip model | ● |
| MT6261D |
the communication band | ● |
| support 2G:850mm/900mm/1800mm/1900MHZ | |
the SIM CARD | ● |
| standard SIM CARD | |
the communication antenna | ● |
| the built-in antenna | |
GPS/BD positioning characteristics | positioning module Group brand/chip model | ● |
| branch of the micro-AT6558D |
cold startup time | ● |
| the average 32 miao | |
hot start time | ● |
| the average 1 miao | |
sensitivity (tracking) | ● |
| -162DBM | |
positioning antenna | ● |
| the built-in antenna | |
external interface | speaker output interface |
| ● |
|
the microphone input interface |
| ● |
| |
input/Output (I/O) interface |
| ● | high input (ACC) | |
ADC detection input interface |
| ● |
| |
RS485 interface |
| ● |
| |
RS232 interface |
| ● |
| |
serial port |
| ● |
| |
CAN |
| ● |
| |
k-LINE |
| ● |
| |
the form factor (s) | unit size (length * width * height) | ● |
| 90mm * 52mm * 20mm |
shell material | ● |
| ABS plastic | |
IP protection class | ● |
| IP67 | |
high intensity magnetic separation |
| ● |
| |
main unit weight | ● |
| 68g
| |
[Wholesale business]]
· Purchase more than 20 GPS products per batch, you can enjoy the wholesale price.
· Return and exchange policy: return within 7 days (ensure that the product is not damaged and does not affect the second sale), exchange within 30 days, one year warranty.
· Logistics: it is convenient to deliver goods to all parts of the country. You can choose air transportation, express delivery, railway and automobile transportation according to customer needs,
· Payment: you can transfer money through UnionPay, Alipay, freight and express delivery charges are paid by the customer.
[FAQ]]
q: Can the equipment be used nationwide? Can use how long?
Answer yes, the equipment can be used all over the country. As long as the equipment is not damaged and the mobile phone card is not overdue, the platform fee of the equipment can always be checked.
Q: Does the device still need a mobile phone traffic card? How much traffic is needed?
A Yes, the device needs a mobile traffic card to upload data, which requires about 25m of traffic per month.
Q: Is one product dropshipping supported? How to join?
If you support it, you need to pay the corresponding express fee. If you join the agent, please contact Wangwang customer service.
Q: Can it be OEM? How much does it take?
Answer is OK, generally need more than 500 sets
